linked List

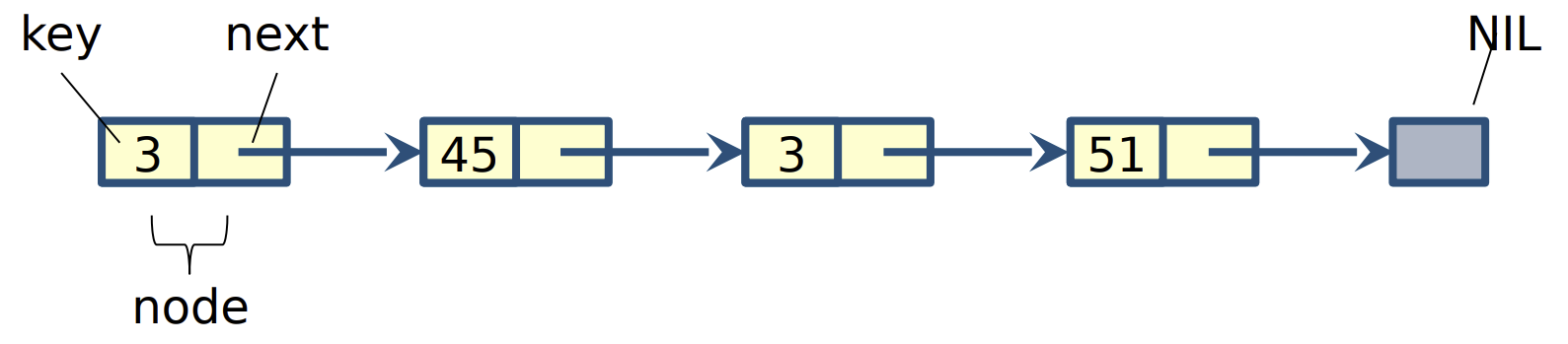

Singularly Linked List

Dynamic data structure consisting of a sequence of nodes arranged in a linear order

• The order in a linked list is determined by a pointer in each object

Each node(element) of a linked list $L$ has an key and a pointer next

• Given a node x in the list, x.next points to its successor in the linked list
• if x.next = NIL, that element is the last element and is called the tail of the list.
• L.head points to the first element of the list $L$, if L.head = NIL then the list is empty.
• L.tail points to the last element of the list $L$
• if L.head && L.tail = NIL, then the list is empty

Insertion

Insertion at the head, that:

• Allocate a new node
• update two pointers

Time complexity : $O(1)$

INSERT(L,x):
	x.next = L.head
	L.head = x

Deletion

Deletion at the head, that:

• Update L.head
• Deallocate memeory of node being deleted(done by garbage collection normally)

Time Complexity : $O(1)$

DELETE-HEAD(L):
	if( L.head != NIL ):
		L.head = L.head.next

Search

Find the first element with key $k$ in list $L$ using simple linear search.

• if found, return a pointer to this element.
• if not, return NIL. Iterator pattern

Time Complexity : $O(n)$

SEARCH(L,k):
	x = L.head
	while( x != NIL and x.key != k ):
		x = x.next
	return x

Recursion

The structure of linked lists is inherently recursive

• Iterators can be implemented by recursive algorithms

REC-SEARCH(x,k):
	if( x = NIL ):
		return x
	else if( x.key = k ):
		return x
	else:
		return REC-SEARCH(x.next,k)

Doubly Linked List

Extension of singly linked list in which each node has a pointer attribute prev

• a node x in the list, x.prev points to the previous node in the linked list
• if x.prev = NIL, x has no predecessor and is therefore the head of the list

Pro: some operations are simplified and become more efficient# Con: memory overhead

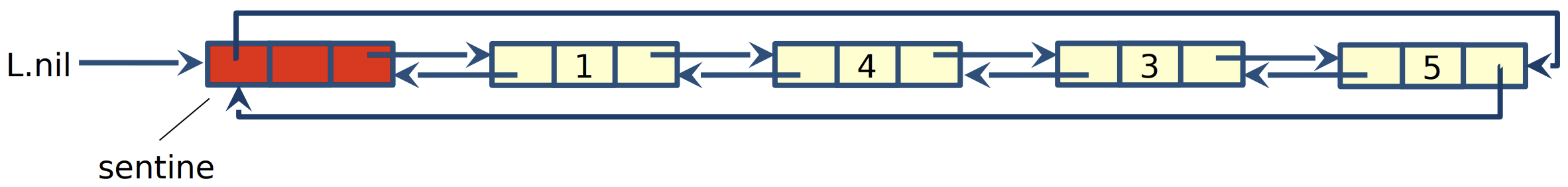

Circular Linked List

Boundary conditions complicate the specification of the operations on doubly linked lists

• We can introduce sentinels to simplify the code A Sentinal is a dummy node L.nil between the head and tail
• L.nil.next points to the head
• L.nil.prev points to the tail
• The next attribute of the tail and the prev attribute of the head point to L.nil
• Attribute L.head is no longer needed (use L.nil.next instead)
