Routing

Network layer responsible for routing data from source to destination across multiple hops. with the goal to find the best route to a given network

Routing Types:

Static Routing

involves manually configuring routing tables with fixed routes. These routes do not change unless manually updated by a network administrator.

• Predefined routes
• lacks flexibility
• requires maintenance
• lacks scalability.

Dynamic Routing

uses protocols to automatically discover and maintain routing information. Routers exchange information to adjust routes based on network conditions.

• Adjusts routes based on network changes.

Routing Methods

Inter-domain Unicast Routing

Routing data between different autonomous systems.

• since an AS is unlikely to trust its neighbours, routing must consider policy:
  • Policy restrictions can determine your topology
  • Policy restrictions on which route data can follow
  • Prefer control over routing, even if that means data doesn’t necessarily follow the best (shortest) path

BGP (Border Gateway Protocol)

External BGP (eBGP) used to exchange routing information between ASes

• Used to derive “best” route to each destination; installed in routers to control forwarding
• exchanges knowledge of the AS graph topology, through a TCP connection between routers
• Neighbouring ASes configure an eBGP session to exchange routes Internal BGP (iBGP) propagates routing information to routers within an AS
• The intra-domain routing protocol handles routing within the AS
• iBGP distributes information on how to reach external destinations

intra-domain Unicast Routing

Routing data within a single autonomous system.

• operates a single routing protocol
• Running on IP routers within an autonomous system

Routing Protocols

Distance Vector Protocol

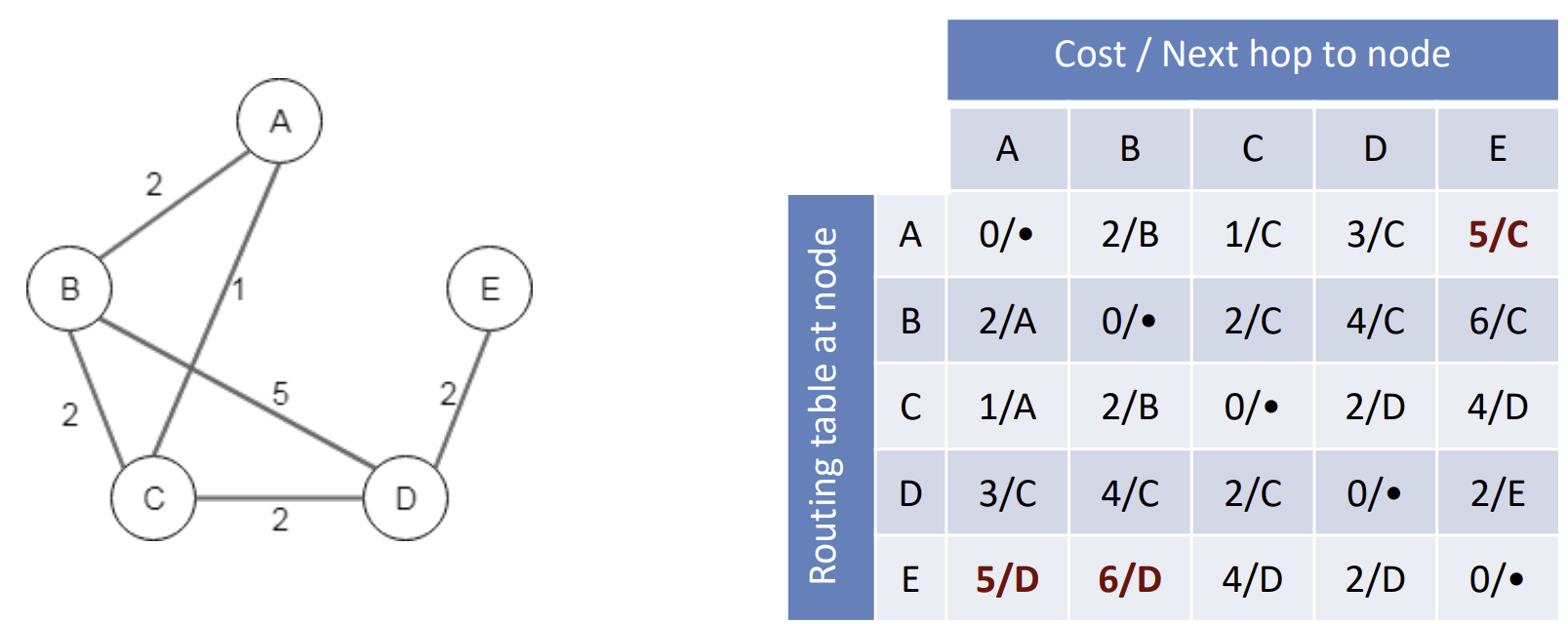

Each node maintains a distance vector(shortest known distance to every node in the network)

• vectors are periodically exchanged with neighbouring nodes, enabling each node to gradually learn the distance of all other nodes
• the routing tables across the network “converge” to a stable state, where the best paths are established
  • Links that are down or unknown are assigned a distance of ∞
  • Packets are forwarded along the route with the shortest distance to the destination

Limitations

tries to minimise state at nodes, As a consequence, is slow to converge. count to inf problem occurs when routers continuously increase the metric for a route to a destination due to a network failure. leading to a loop where the hop count incrementally rises until it reaches inf. This can result in routing loops and inefficient network routing.

solutions (no general solution exists)

• Split Horizon : Prevents a router from advertising a route back to the neighbour from which it learned the route. This helps to break the loop of incorrect information.

Example : RIP(Routing Information Protocol)

A type of distance vector protocol used to determine the best route for data packets in a network

• Uses hop count as a metric, with max limit of 15 hops to prevent routing loops.
• Periodically broadcast its entire routing table to neighbouring routers, helps all routers in the network to update and converge on the best path to each destination

link state Routing

each router maintains a complete map of the network’s topology called the link state information. Each node then directly calculates shortest path to every other node locally, uses this as routing table. Link state information updates are flooded on start-up, and when the topology changes, each update contains:

• The address of node that sent the update
• List of directly connected neighbours of that node
  • With cost of the link to every neighbour
  • With the range of addresses assigned to each link
• a sequence number packets are forwarded based on calculated shortest path Recalculate shortest paths on every routing update

Example : OSPF(Open Shortest Path First)

a type of link state routing protocol used for routing IP packets within a single AS

• Calculates the shortest path to each network destination using Dijkstra’s algorithm
• Quickly propagates topology changes throughout the network, ensuring efficient and reliable data routing

Distance Vector vs Link State

Distance Vector Routing	Link State Routing
Simple to implement	More complex
Routers only store the distance to each other node O(n)	Requires each router to store complete network map O($n^2$)
Suffers from slow convergence, Therefore unsuitable for large networks	faster convergence, therefore suitable for larger networks

Terminology

Network topology^[Network topology: The arrangement or layout of different elements (nodes, links) in a computer network.] Hop^[Hop: A step in the journey from source to destination, where data is passed from one network device (like a router) to another.] Gateway device^[Gateway devices: Routers that connect different networks and direct data packets between them, determining the best path for data to reach its destination.] DFZ (Default Free Zone)^[DFZ (Default Free Zone) The collection of all Internet routers that do not require a default route because they have a full view of the global Internet routing table | Routers in the DFZ can make independent routing decisions for every destination on the Internet]
