Security Protocol

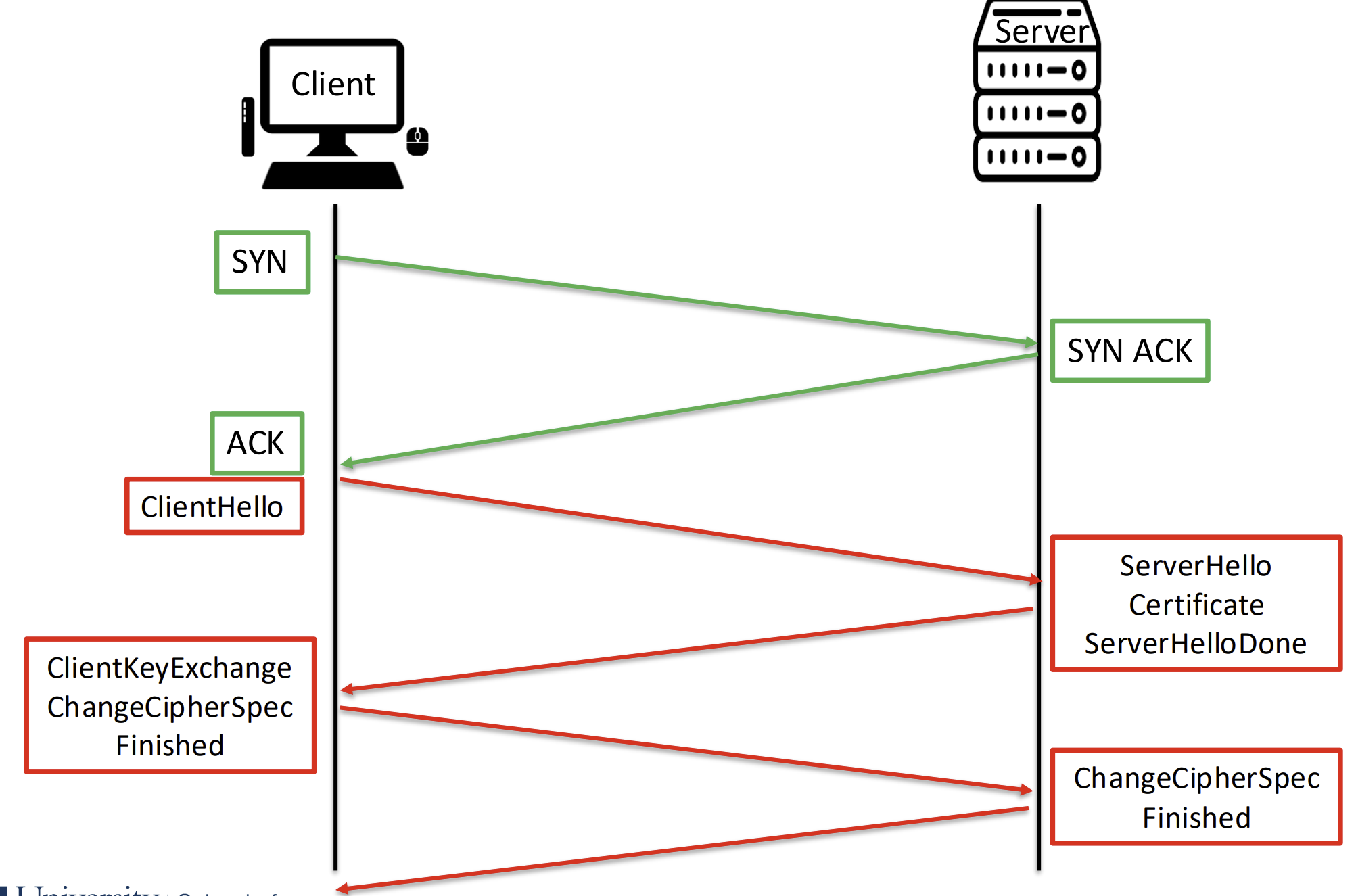

TLS - Transport Layer Security
- standard protocol for internet security
- enables privacy and data integrity between two communicating applications.
- Based on Secure Socket Layer protocol (SSL v.3)
- complies with CIA
IPSec
A framework of open standards that incorporates cryptographic secure services in IP networks. A suite of protocols used to secure IP communications by authenticating and encrypting each IP packet in a data stream. Commonly used for creating secure VPN connections, ensuring confidentiality, integrity, and authentication of data sent over public or private networks.
IPSec modes
- Tunnel Mode : between gateways, end-host to a gateway, or when gateway acts as a proxy for the hosts behind it.
- Transport mode : end-to-end security between hosts, e.g. between end-hosts, end-hosts and a gateway that acts as a host (vulnerable to eavesdroppers).
Negotiation Phase
Phase 1
- Establishment of SAs between two entities
- Two modes: Main or Aggressive
- 4 techniques for authentication:
- Public key signatures
- Symmetric key
- Public key encryption
- Revised public key encryption
- Uses ephemeral Diffie-Helman (EDH) to establish session key
- Provides perfect forward secrecy Phase 2
- Establishment of SAs for ESP/AH protocols
- One mode : Quick Mode
ISAKMP - Internet Security Association & Key Management Protocols
A protocol used for establishing, negotiating, modifying, and deleting Security Associations (SAs) in IPsec. Provides a framework for key exchange and authentication, ensuring secure communication between devices in a network.
- enables the use of SA in IPSec The ISAKMP protocol (RFC 2408) defines procedures for:
- Authentication
- Creation/Management of SAs
- Key generation /key transport techniques
- Mitigation of threats (e.g. DoS attacks, replay attacks)
SA - Security Association
- A set of security parameters established between two network entities to define how they will secure communications, typically used in IPSec.
- Specifies encryption, authentication algorithms, and key exchange methods to ensure secure data transmission.
IKE - Internet Key Exchange
Protocol for establishing secure communication channels, often used in VPNs. Uses two phases:
- Phase 1 - sets up a secure channel
- Phase 2 - negotiates encryption and authentication for data transfer.
ESP - Encapsulating Security Payload
payload encryption ensuring authenticity, integrity and confidentiality.
- does not provide integrity and authentication for the ENTIRE packet.
AH - Authentication Header
Protocol used in IPsec to provide data integrity and authentication for IP packets. AH ensures that packets are from a legitimate source and have not been altered in transit by adding a cryptographic checksum to the packet header and payload.
